#include <glShader.h>

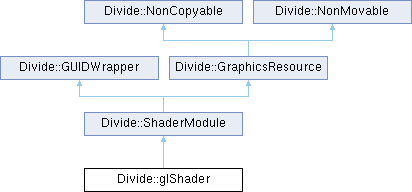

Inheritance diagram for Divide::glShader:

Public Member Functions
	glShader (GFXDevice &context, const std::string_view name, const U32 generation)

	~glShader () override

bool	load (const ShaderProgram::ShaderLoadData &data)

	PROPERTY_R_IW (gl46core::UseProgramStageMask, stageMask, gl46core::UseProgramStageMask::GL_NONE_BIT)

	PROPERTY_R_IW (gl46core::GLuint, handle, GL_NULL_HANDLE)

Public Member Functions inherited from Divide::ShaderModule
	ShaderModule (GFXDevice &context, const std::string_view name, U32 generation)

virtual	~ShaderModule () override

void	registerParent (ShaderProgram *parent)

void	deregisterParent (ShaderProgram *parent)

	PROPERTY_R (Str< 256 >, name)

	PROPERTY_R (bool, valid, false)

	PROPERTY_R (bool, inUse, true)

	PROPERTY_R (U32, generation, 0u)

	PROPERTY_R (U64, lastUsedFrame, U64_MAX - MAX_FRAME_LIFETIME - 1u)

Public Member Functions inherited from Divide::GUIDWrapper
	GUIDWrapper () noexcept

	GUIDWrapper (const GUIDWrapper &old) noexcept

	GUIDWrapper (GUIDWrapper &&old) noexcept

virtual	~GUIDWrapper ()=default

FORCE_INLINE I64	getGUID () const noexcept

GUIDWrapper &	operator= (const GUIDWrapper &old)=delete

GUIDWrapper &	operator= (GUIDWrapper &&other)=delete

Public Member Functions inherited from Divide::GraphicsResource
virtual	~GraphicsResource ()

GFXDevice &	context () const noexcept

U64	nameHash () const noexcept

Public Member Functions inherited from Divide::NonCopyable
	NonCopyable (const NonCopyable &)=delete

NonCopyable &	operator= (const NonCopyable &)=delete

	NonCopyable (NonCopyable &&)=default

NonCopyable &	operator= (NonCopyable &&)=default

Public Member Functions inherited from Divide::NonMovable
	NonMovable (NonMovable &&)=delete

NonMovable &	operator= (NonMovable &&)=delete

	NonMovable (const NonMovable &)=default

NonMovable &	operator= (const NonMovable &)=default

Static Public Member Functions
static glShaderEntry	LoadShader (GFXDevice &context, glShaderProgram *parent, const std::string_view name, U32 targetGeneration, ShaderProgram::ShaderLoadData &data)
	Add or refresh a shader from the cache.

Static Public Member Functions inherited from Divide::ShaderModule
static ShaderModule *	GetShader (const std::string_view name)
	Returns a reference to an already loaded shader, null otherwise.

static void	Idle (bool fast)

static void	InitStaticData ()

static void	DestroyStaticData ()

Static Public Member Functions inherited from Divide::GUIDWrapper
static I64	generateGUID () noexcept

Private Member Functions
ShaderResult	uploadToGPU ()

void	onParentValidation ()

void	uploadPushConstants (const PushConstantsStruct &pushConstants)

Private Attributes
ShaderProgram::ShaderLoadData	_loadData

vector< gl46core::GLuint >	_shaderIDs

bool	_linked = false

gl46core::GLint	_pushConstantsLocation {-2}

Friends
class	glShaderProgram

Additional Inherited Members
Public Types inherited from Divide::GraphicsResource
enum class	Type : U8 { RENDER_TARGET , SHADER_BUFFER , BUFFER , SHADER , SHADER_PROGRAM , TEXTURE , COUNT }

Protected Types inherited from Divide::ShaderModule
using	ShaderMap = hashMap< U64, ShaderModule_uptr >

Protected Member Functions inherited from Divide::GraphicsResource
	GraphicsResource (GFXDevice &context, Type type, I64 GUID, U64 nameHash)

Protected Member Functions inherited from Divide::NonCopyable
	NonCopyable ()=default

	~NonCopyable ()=default

Protected Member Functions inherited from Divide::NonMovable
	NonMovable ()=default

	~NonMovable ()=default

Static Protected Member Functions inherited from Divide::ShaderModule
static ShaderModule *	GetShaderLocked (const std::string_view name)

Protected Attributes inherited from Divide::ShaderModule
Mutex	_parentLock

eastl::fixed_vector< ShaderProgram *, 4, true >	_parents

Protected Attributes inherited from Divide::GUIDWrapper
const I64	_guid

Protected Attributes inherited from Divide::GraphicsResource
GFXDevice &	_context

Static Protected Attributes inherited from Divide::ShaderModule
static constexpr U32	MAX_FRAME_LIFETIME = Config::TARGET_FRAME_RATE * 10

static std::atomic_bool	s_modulesRemoved
	Shader cache.

static ShaderMap	s_shaderNameMap

static SharedMutex	s_shaderNameLock

Detailed Description

glShader represents one of a program's rendering stages (vertex, geometry, fragment, etc) It can be used simultaneously in multiple programs/pipelines

Definition at line 58 of file glShader.h.

Constructor & Destructor Documentation

◆ glShader()

Divide::glShader::glShader	(	GFXDevice &	context,
		const std::string_view	name,
		const U32	generation
	)

explicit

The shader's name is the period-separated list of properties, type is the render stage this shader is used for

Definition at line 50 of file glShader.cpp.

◆ ~glShader()

Divide::glShader::~glShader ( )

override

Definition at line 55 of file glShader.cpp.

Member Function Documentation

◆ load()

bool Divide::glShader::load ( const ShaderProgram::ShaderLoadData & data )

Definition at line 284 of file glShader.cpp.

◆ LoadShader()

glShaderEntry Divide::glShader::LoadShader	(	GFXDevice &	context,
		glShaderProgram *	parent,
		const std::string_view	name,
		U32	targetGeneration,
		ShaderProgram::ShaderLoadData &	data
	)

static

Add or refresh a shader from the cache.

Load a shader by name, source code and stage.

Definition at line 320 of file glShader.cpp.

◆ onParentValidation()

void Divide::glShader::onParentValidation ( )

private

Definition at line 357 of file glShader.cpp.

◆ PROPERTY_R_IW() [1/2]

Divide::glShader::PROPERTY_R_IW	(	gl46core::GLuint	,
		handle	,
		GL_NULL_HANDLE
	)

◆ PROPERTY_R_IW() [2/2]

Divide::glShader::PROPERTY_R_IW	(	gl46core::UseProgramStageMask	,
		stageMask	,
		gl46core::UseProgramStageMask::GL_NONE_BIT
	)

◆ uploadPushConstants()

void Divide::glShader::uploadPushConstants ( const PushConstantsStruct & pushConstants )

private

Definition at line 371 of file glShader.cpp.

◆ uploadToGPU()

ShaderResult Divide::glShader::uploadToGPU ( )

private

Definition at line 67 of file glShader.cpp.

Friends And Related Function Documentation

◆ glShaderProgram

friend class glShaderProgram

friend

Definition at line 79 of file glShader.h.

Member Data Documentation

◆ _linked

bool Divide::glShader::_linked = false

private

Definition at line 89 of file glShader.h.

◆ _loadData

ShaderProgram::ShaderLoadData Divide::glShader::_loadData

private

Definition at line 87 of file glShader.h.

◆ _pushConstantsLocation

gl46core::GLint Divide::glShader::_pushConstantsLocation {-2}

private

Definition at line 90 of file glShader.h.

◆ _shaderIDs

vector<gl46core::GLuint> Divide::glShader::_shaderIDs

private

Definition at line 88 of file glShader.h.

The documentation for this class was generated from the following files:

G:/Divide-Framework/Source/Platform/Video/RenderBackend/OpenGL/Shaders/Headers/glShader.h
G:/Divide-Framework/Source/Platform/Video/RenderBackend/OpenGL/Shaders/glShader.cpp
