Graphical User Interface. More...

#include <GUI.h>

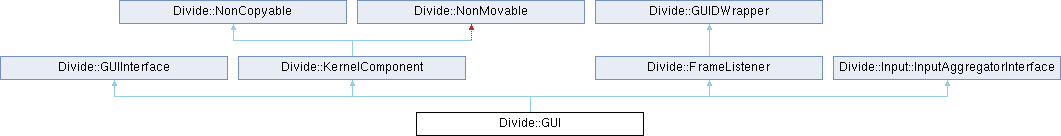

Inheritance diagram for Divide::GUI:

Public Types
using	GUIMapPerScene = hashMap< I64, SceneGUIElements * >

Public Types inherited from Divide::GUIInterface
using	GUIMap = hashMap< U64, std::pair< GUIElement *, bool > >

using	ButtonCallback = DELEGATE< void, I64 >

Public Member Functions
	GUI (Kernel &parent)

	~GUI () override

ErrorCode	init (PlatformContext &context)
	Create the GUI.

void	destroy ()

void	preDraw (GFXDevice &context, const Rect< I32 > &viewport, GFX::CommandBuffer &bufferInOut, GFX::MemoryBarrierCommand &memCmdInOut)
	Render all elements that need their own internal render targets (e.g. CEGUI)

void	draw (GFXDevice &context, const Rect< I32 > &viewport, GFX::CommandBuffer &bufferInOut, GFX::MemoryBarrierCommand &memCmdInOut)
	Go through all of the registered scene gui elements and gather all of the render commands.

void	drawText (const TextElementBatch &batch, const Rect< I32 > &targetViewport, GFX::CommandBuffer &bufferInOut, GFX::MemoryBarrierCommand &memCmdInOut, bool pushCamera=true)
	Text rendering is handled exclusively by Mikko Mononen's FontStash library (https://github.com/memononen/fontstash)

void	onResolutionChange (const SizeChangeParams &params)
	Mostly used by CEGUI to keep track of screen dimensions.

void	onChangeScene (Scene *newScene)
	When we change a scene, we want to toggle our current scene GUI elements off and toggle the new scene's elements on.

void	onUnloadScene (Scene *scene)
	When we unload a scene, we unload all of its GUI elements. ToDo: Scene should own these and scene should submit to GUI for rendering. Current logic is backwards -Ionut.

void	update (U64 deltaTimeUS)
	Main update call. Used to tick gui elements (cursors, animations, etc)

template<typename T > requires std::is_base_of_v<GUIElement, T>
T *	getSceneGUIElementImpl (const I64 sceneID, const U64 elementName)
	Find a return a gui element by name.

template<typename T > requires std::is_base_of_v<GUIElement, T>
T *	getSceneGUIElementImpl (const I64 sceneID, const I64 elementID)
	Find a return a gui element by ID.

GUIConsole &	getConsole () noexcept
	Get a reference to our console window.

const GUIConsole &	getConsole () const noexcept
	Get a const reference to our console window.

CEGUI::Window *	rootSheet () const noexcept
	Get a pointer to the root sheet that CEGUI renders into.

GUIMessageBox *	getDefaultMessageBox () const noexcept
	Return a pointer to the default, general purpose message box.

void	setCursorPosition (I32 x, I32 y)
	Mouse cursor forced to a certain position.

CEGUI::GUIContext *	getCEGUIContext () noexcept
	Provides direct access to the CEGUI context. Used by plugins (e.g. GUIConsole, GUIInput, etc)

void	showDebugCursor (bool state)
	Toggle debug cursor rendering on or off.

	PROPERTY_R (bool, showDebugCursor, false)
	Debug cursor state. The debug cursor is a the cursor as it's know internally to CEGUI (based on its internal position and state)

	PROPERTY_R (string, defaultGUIScheme, "GWEN")
	The "skin" used by CEGUI.

	PROPERTY_RW (U64, textRenderInterval, Time::MillisecondsToMicroseconds(10))
	We should avoid rendering text as fast as possible.

Public Member Functions inherited from Divide::GUIInterface
	GUIInterface (GUI &context)

virtual	~GUIInterface ()

void	onLanguageChange (std::string_view newLanguage)

GUI &	getParentContext () noexcept

const GUI &	getParentContext () const noexcept

template<typename T > requires std::is_base_of_v<GUIElement, T>
T *	getGUIElement (const U64 elementName) const
	Get a pointer to an element by name/id.

template<typename T > requires std::is_base_of_v<GUIElement, T>
T *	getGUIElement (const I64 elementID) const

virtual GUIText *	addText (const char *name, const RelativePosition2D &position, const string &font, const UColour4 &colour, const string &text, bool multiLine=false, U8 fontSize=16u)

virtual GUIText *	modifyText (const char *name, const string &text, bool multiLine)

virtual GUIMessageBox *	addMsgBox (const char *name, const string &title, const string &message, vec2< I32 > offsetFromCentre=vec2< I32 >(0))

virtual GUIButton *	addButton (const char *name, const string &text, const RelativePosition2D &offset, const RelativeScale2D &size, const string &rootSheetID="")

virtual GUIFlash *	addFlash (const char *name, const RelativePosition2D &position, const RelativeScale2D &size)

virtual CEGUI::Window *	createWindow (const CEGUI::String &type, const CEGUI::String &name)

virtual CEGUI::Window *	loadWindowFromLayoutFile (const char *layoutFileName)

virtual bool	unloadWindow (CEGUI::Window *&window)

Public Member Functions inherited from Divide::KernelComponent
	KernelComponent (Kernel &parent) noexcept

virtual	~KernelComponent ()=default

Kernel &	parent () noexcept

const Kernel &	parent () const noexcept

Public Member Functions inherited from Divide::NonCopyable
	NonCopyable (const NonCopyable &)=delete

NonCopyable &	operator= (const NonCopyable &)=delete

	NonCopyable (NonCopyable &&)=default

NonCopyable &	operator= (NonCopyable &&)=default

Public Member Functions inherited from Divide::FrameListener
	FrameListener (const Str< 64 > &name, FrameListenerManager &parent, U32 callOrder)
	Either give it a name.

virtual	~FrameListener () override

bool	operator< (FrameListener &that) const noexcept

Public Member Functions inherited from Divide::GUIDWrapper
	GUIDWrapper () noexcept

	GUIDWrapper (const GUIDWrapper &old) noexcept

	GUIDWrapper (GUIDWrapper &&old) noexcept

virtual	~GUIDWrapper ()=default

FORCE_INLINE I64	getGUID () const noexcept

GUIDWrapper &	operator= (const GUIDWrapper &old)=delete

GUIDWrapper &	operator= (GUIDWrapper &&other)=delete

Public Member Functions inherited from Divide::Input::InputAggregatorInterface
virtual	~InputAggregatorInterface ()=default

virtual bool	onKeyDown (const KeyEvent &arg)=0
	Keyboard: return true if input was consumed.

virtual bool	onKeyUp (const KeyEvent &arg)=0

virtual bool	mouseMoved (const MouseMoveEvent &arg)=0
	Mouse: return true if input was consumed.

virtual bool	mouseButtonPressed (const MouseButtonEvent &arg)=0

virtual bool	mouseButtonReleased (const MouseButtonEvent &arg)=0

virtual bool	joystickButtonPressed (const JoystickEvent &arg)=0
	Joystick or Gamepad: return true if input was consumed.

virtual bool	joystickButtonReleased (const JoystickEvent &arg)=0

virtual bool	joystickAxisMoved (const JoystickEvent &arg)=0

virtual bool	joystickPovMoved (const JoystickEvent &arg)=0

virtual bool	joystickBallMoved (const JoystickEvent &arg)=0

virtual bool	joystickAddRemove (const JoystickEvent &arg)=0

virtual bool	joystickRemap (const JoystickEvent &arg)=0

virtual bool	onTextEvent (const TextEvent &arg)=0

Protected Member Functions
bool	frameStarted (const FrameEvent &evt) override

bool	onKeyDown (const Input::KeyEvent &key) override
	Key pressed: return true if input was consumed.

bool	onKeyUp (const Input::KeyEvent &key) override
	Key released: return true if input was consumed.

bool	joystickAxisMoved (const Input::JoystickEvent &arg) override
	Joystick axis change: return true if input was consumed.

bool	joystickPovMoved (const Input::JoystickEvent &arg) override
	Joystick direction change: return true if input was consumed.

bool	joystickButtonPressed (const Input::JoystickEvent &arg) override
	Joystick button pressed: return true if input was consumed.

bool	joystickButtonReleased (const Input::JoystickEvent &arg) override
	Joystick button released: return true if input was consumed.

bool	joystickBallMoved (const Input::JoystickEvent &arg) override

bool	joystickAddRemove (const Input::JoystickEvent &arg) override

bool	joystickRemap (const Input::JoystickEvent &arg) override

bool	mouseMoved (const Input::MouseMoveEvent &arg) override
	Mouse moved: return true if input was consumed.

bool	mouseButtonPressed (const Input::MouseButtonEvent &arg) override
	Mouse button pressed: return true if input was consumed.

bool	mouseButtonReleased (const Input::MouseButtonEvent &arg) override
	Mouse button released: return true if input was consumed.

bool	onTextEvent (const Input::TextEvent &arg) noexcept override
	Called when text input was detected.

Protected Member Functions inherited from Divide::GUIInterface
void	addElement (U64 id, GUIElement *element)

virtual GUIElement *	getGUIElementImpl (U64 elementName, GUIType type) const

virtual GUIElement *	getGUIElementImpl (I64 elementID, GUIType type) const

Protected Member Functions inherited from Divide::NonCopyable
	NonCopyable ()=default

	~NonCopyable ()=default

Protected Member Functions inherited from Divide::FrameListener
void	setCallOrder (const U32 order) noexcept

virtual bool	frameStarted (const FrameEvent &evt)

virtual bool	framePreRender (const FrameEvent &evt)
	framePreRenderStarted is called when we need to start processing the visual aspect of a scene

virtual bool	frameSceneRenderStarted (const FrameEvent &evt)
	frameSceneRenderStarted is called right before rendering the scene for the current player starts

virtual bool	frameSceneRenderEnded (const FrameEvent &evt)
	frameSceneRenderEnded is called immediately after scene rendering for the current player has ended but before any blitting operations

virtual bool	frameRenderingQueued (const FrameEvent &evt)

virtual bool	framePostRender (const FrameEvent &evt)

virtual bool	frameEnded (const FrameEvent &evt)
	frameEnded is called after the buffers have been swapped

	PROPERTY_R_IW (bool, enabled, false)

	PROPERTY_RW (Str< 64 >, name)

Protected Attributes
CEGUI::Window *	_rootSheet {nullptr}
	The root window into which CEGUI anchors all of its elements.

CEGUI::GUIContext *	_ceguiContext {nullptr}
	The CEGUI context as returned by the library upon creation.

Protected Attributes inherited from Divide::GUIInterface
GUI *	_context

std::array< GUIMap, to_base(GUIType::COUNT)>	_guiElements

Protected Attributes inherited from Divide::KernelComponent
Kernel &	_parent

Protected Attributes inherited from Divide::GUIDWrapper
const I64	_guid

Private Member Functions
I32	getFont (const Str< 64 > &fontName)
	Try to find the requested font in the font cache. Load on cache miss.

GUIElement *	getSceneGUIElementImpl (I64 sceneID, U64 elementName, GUIType type) const
	Internal lookup of a GUIElement by name.

GUIElement *	getSceneGUIElementImpl (I64 sceneID, I64 elementID, GUIType type) const
	Internal lookup of a GUIElement by ID.

void	recreateDefaultMessageBox ()
	Used to recreate and re-register the default message box if needed (usually on scene change)

Private Attributes
bool	_init {false}
	Set to true when the GUI has finished loading.

CEGUIInput	_ceguiInput
	Used to implement key repeat.

CEGUI::CEGUIRenderer *	_ceguiRenderer { nullptr }
	Used to render CEGUI to a texture; We want to port this to the Divide::GFX interface.

CEGUI::DVDTextureTarget *	_renderTextureTarget {nullptr}
	Used to render CEGUI elements into. We blit this on top of our scene target.

std::unique_ptr< GUIConsole >	_console
	Our custom in-game console (for logs and commands. A la Quake's ~-console)

std::unique_ptr< GUIMessageBox >	_defaultMsgBox
	Pointer to a default message box used for general purpose messages.

Scene *	_activeScene {nullptr}
	Each scene has its own gui elements! (0 = global). We keep a pointer to the scene but we really shouldn't. Scene should feed itself into GUI.

GUIMapPerScene	_guiStack {}
	All the GUI elements created per scene.

SharedMutex	_guiStackLock {}
	A lock to protect access to _guiStack.

DVDFONSContext_uptr	_fonsContext
	We use Font Stash (https://github.com/memononen/fontstash) for rendering basic text on the screen. This is our own Divide::GFX based context object used for rendering.

hashMap< U64, I32 >	_fonts
	A cache of all font IDs used by Font Stash stored by name ID.

hashAlg::pair< Str< 64 >, I32 >	_fontCache = { "", -1 }
	A cache of the last requested font by name to avoid a lookup in the fonts map.

Pipeline *	_textRenderPipeline {nullptr}
	The text rendering pipeline we used to draw Font Stash text.

Handle< ShaderProgram >	_textRenderShader = INVALID_HANDLE<ShaderProgram>
	The text rendering shaderProgram we used to draw Font Stash text.

Handle< ShaderProgram >	_ceguiRenderShader = INVALID_HANDLE<ShaderProgram>

Friends
class	SceneGUIElements

Additional Inherited Members
Static Public Member Functions inherited from Divide::GUIDWrapper
static I64	generateGUID () noexcept

Detailed Description

Graphical User Interface.

Definition at line 77 of file GUI.h.

Member Typedef Documentation

◆ GUIMapPerScene

using Divide::GUI::GUIMapPerScene = hashMap<I64, SceneGUIElements*>

Definition at line 83 of file GUI.h.

Constructor & Destructor Documentation

◆ GUI()

Divide::GUI::GUI ( Kernel & parent )

explicit

Definition at line 124 of file GUI.cpp.

◆ ~GUI()

Divide::GUI::~GUI ( )

override

Definition at line 135 of file GUI.cpp.

Member Function Documentation

◆ destroy()

void Divide::GUI::destroy ( )

Definition at line 662 of file GUI.cpp.

◆ draw()

void Divide::GUI::draw	(	GFXDevice &	context,
		const Rect< I32 > &	viewport,
		GFX::CommandBuffer &	bufferInOut,
		GFX::MemoryBarrierCommand &	memCmdInOut
	)

Go through all of the registered scene gui elements and gather all of the render commands.

Definition at line 302 of file GUI.cpp.

◆ drawText()

void Divide::GUI::drawText	(	const TextElementBatch &	batch,
		const Rect< I32 > &	targetViewport,
		GFX::CommandBuffer &	bufferInOut,
		GFX::MemoryBarrierCommand &	memCmdInOut,
		bool	pushCamera = `true`
	)

Text rendering is handled exclusively by Mikko Mononen's FontStash library (https://github.com/memononen/fontstash)

Definition at line 180 of file GUI.cpp.

◆ frameStarted()

bool Divide::GUI::frameStarted ( const FrameEvent & evt )

overrideprotectedvirtual

Adapter patern instead of pure interface for the same reason as the Ogre boys pointed out: Implement what you need without filling classes with dummy functions frameStarted is calld at the beggining of a new frame before processing the logic aspect of a scene

Reimplemented from Divide::FrameListener.

Definition at line 381 of file GUI.cpp.

◆ getCEGUIContext()

CEGUI::GUIContext * Divide::GUI::getCEGUIContext ( )

noexcept

Provides direct access to the CEGUI context. Used by plugins (e.g. GUIConsole, GUIInput, etc)

Definition at line 862 of file GUI.cpp.

◆ getConsole() [1/2]

const GUIConsole & Divide::GUI::getConsole ( ) const

inlinenoexcept

Get a const reference to our console window.

Definition at line 116 of file GUI.h.

◆ getConsole() [2/2]

GUIConsole & Divide::GUI::getConsole ( )

inlinenoexcept

Get a reference to our console window.

Definition at line 114 of file GUI.h.

◆ getDefaultMessageBox()

GUIMessageBox * Divide::GUI::getDefaultMessageBox ( ) const

inlinenoexcept

Return a pointer to the default, general purpose message box.

Definition at line 120 of file GUI.h.

◆ getFont()

I32 Divide::GUI::getFont ( const Str< 64 > & fontName )

private

Try to find the requested font in the font cache. Load on cache miss.

Definition at line 868 of file GUI.cpp.

◆ getSceneGUIElementImpl() [1/4]

template<typename T >
requires std::is_base_of_v<GUIElement, T>

T * Divide::GUI::getSceneGUIElementImpl	(	const I64	sceneID,
		const I64	elementID
	)

inline

Find a return a gui element by ID.

Definition at line 112 of file GUI.h.

◆ getSceneGUIElementImpl() [2/4]

template<typename T >
requires std::is_base_of_v<GUIElement, T>

T * Divide::GUI::getSceneGUIElementImpl	(	const I64	sceneID,
		const U64	elementName
	)

inline

Find a return a gui element by name.

Definition at line 109 of file GUI.h.

◆ getSceneGUIElementImpl() [3/4]

GUIElement * Divide::GUI::getSceneGUIElementImpl	(	I64	sceneID,
		I64	elementID,
		GUIType	type
	)		const

private

Internal lookup of a GUIElement by ID.

Definition at line 844 of file GUI.cpp.

◆ getSceneGUIElementImpl() [4/4]

GUIElement * Divide::GUI::getSceneGUIElementImpl	(	I64	sceneID,
		U64	elementName,
		GUIType	type
	)		const

private

Internal lookup of a GUIElement by name.

Definition at line 825 of file GUI.cpp.

◆ init()

ErrorCode Divide::GUI::init ( PlatformContext & context )

Create the GUI.

Definition at line 399 of file GUI.cpp.

◆ joystickAddRemove()

bool Divide::GUI::joystickAddRemove ( const Input::JoystickEvent & arg )

overrideprotectedvirtual

Implements Divide::Input::InputAggregatorInterface.

Definition at line 810 of file GUI.cpp.

◆ joystickAxisMoved()

bool Divide::GUI::joystickAxisMoved ( const Input::JoystickEvent & arg )

overrideprotectedvirtual

Joystick axis change: return true if input was consumed.

Implements Divide::Input::InputAggregatorInterface.

Definition at line 780 of file GUI.cpp.

◆ joystickBallMoved()

bool Divide::GUI::joystickBallMoved ( const Input::JoystickEvent & arg )

overrideprotectedvirtual

Implements Divide::Input::InputAggregatorInterface.

Definition at line 804 of file GUI.cpp.

◆ joystickButtonPressed()

bool Divide::GUI::joystickButtonPressed ( const Input::JoystickEvent & arg )

overrideprotectedvirtual

Joystick button pressed: return true if input was consumed.

Implements Divide::Input::InputAggregatorInterface.

Definition at line 792 of file GUI.cpp.

◆ joystickButtonReleased()

bool Divide::GUI::joystickButtonReleased ( const Input::JoystickEvent & arg )

overrideprotectedvirtual

Joystick button released: return true if input was consumed.

Implements Divide::Input::InputAggregatorInterface.

Definition at line 798 of file GUI.cpp.

◆ joystickPovMoved()

bool Divide::GUI::joystickPovMoved ( const Input::JoystickEvent & arg )

overrideprotectedvirtual

Joystick direction change: return true if input was consumed.

Implements Divide::Input::InputAggregatorInterface.

Definition at line 786 of file GUI.cpp.

◆ joystickRemap()

bool Divide::GUI::joystickRemap ( const Input::JoystickEvent & arg )

overrideprotectedvirtual

Implements Divide::Input::InputAggregatorInterface.

Definition at line 815 of file GUI.cpp.

◆ mouseButtonPressed()

bool Divide::GUI::mouseButtonPressed ( const Input::MouseButtonEvent & arg )

overrideprotectedvirtual

Mouse button pressed: return true if input was consumed.

Implements Divide::Input::InputAggregatorInterface.

Definition at line 768 of file GUI.cpp.

◆ mouseButtonReleased()

bool Divide::GUI::mouseButtonReleased ( const Input::MouseButtonEvent & arg )

overrideprotectedvirtual

Mouse button released: return true if input was consumed.

Implements Divide::Input::InputAggregatorInterface.

Definition at line 774 of file GUI.cpp.

◆ mouseMoved()

bool Divide::GUI::mouseMoved ( const Input::MouseMoveEvent & arg )

overrideprotectedvirtual

Mouse moved: return true if input was consumed.

Implements Divide::Input::InputAggregatorInterface.

Definition at line 762 of file GUI.cpp.

◆ onChangeScene()

void Divide::GUI::onChangeScene ( Scene * newScene )

When we change a scene, we want to toggle our current scene GUI elements off and toggle the new scene's elements on.

Definition at line 140 of file GUI.cpp.

◆ onKeyDown()

bool Divide::GUI::onKeyDown ( const Input::KeyEvent & key )

overrideprotectedvirtual

Key pressed: return true if input was consumed.

Implements Divide::Input::InputAggregatorInterface.

Definition at line 750 of file GUI.cpp.

◆ onKeyUp()

bool Divide::GUI::onKeyUp ( const Input::KeyEvent & key )

overrideprotectedvirtual

Key released: return true if input was consumed.

Implements Divide::Input::InputAggregatorInterface.

Definition at line 756 of file GUI.cpp.

◆ onResolutionChange()

void Divide::GUI::onResolutionChange ( const SizeChangeParams & params )

Mostly used by CEGUI to keep track of screen dimensions.

Definition at line 719 of file GUI.cpp.

◆ onTextEvent()

bool Divide::GUI::onTextEvent ( const Input::TextEvent & arg )

overrideprotectedvirtualnoexcept

Called when text input was detected.

Implements Divide::Input::InputAggregatorInterface.

Definition at line 820 of file GUI.cpp.

◆ onUnloadScene()

void Divide::GUI::onUnloadScene ( Scene * scene )

When we unload a scene, we unload all of its GUI elements. ToDo: Scene should own these and scene should submit to GUI for rendering. Current logic is backwards -Ionut.

Definition at line 169 of file GUI.cpp.

◆ preDraw()

void Divide::GUI::preDraw	(	GFXDevice &	context,
		const Rect< I32 > &	viewport,
		GFX::CommandBuffer &	bufferInOut,
		GFX::MemoryBarrierCommand &	memCmdInOut
	)

Render all elements that need their own internal render targets (e.g. CEGUI)

Definition at line 277 of file GUI.cpp.

◆ PROPERTY_R() [1/2]

Divide::GUI::PROPERTY_R	(	bool	,
		showDebugCursor	,
		false
	)

Debug cursor state. The debug cursor is a the cursor as it's know internally to CEGUI (based on its internal position and state)

◆ PROPERTY_R() [2/2]

Divide::GUI::PROPERTY_R	(	string	,
		defaultGUIScheme	,
		"GWEN"
	)

The "skin" used by CEGUI.

◆ PROPERTY_RW()

Divide::GUI::PROPERTY_RW	(	U64	,
		textRenderInterval	,
		Time::MillisecondsToMicroseconds(10)
	)

We should avoid rendering text as fast as possible.

◆ recreateDefaultMessageBox()

void Divide::GUI::recreateDefaultMessageBox ( )

private

Used to recreate and re-register the default message box if needed (usually on scene change)

Definition at line 647 of file GUI.cpp.

◆ rootSheet()

CEGUI::Window * Divide::GUI::rootSheet ( ) const

inlinenoexcept

Get a pointer to the root sheet that CEGUI renders into.

Definition at line 118 of file GUI.h.

◆ setCursorPosition()

void Divide::GUI::setCursorPosition	(	I32	x,
		I32	y
	)

Mouse cursor forced to a certain position.

Definition at line 741 of file GUI.cpp.

◆ showDebugCursor()

void Divide::GUI::showDebugCursor ( bool state )

Toggle debug cursor rendering on or off.

Definition at line 709 of file GUI.cpp.

◆ update()

void Divide::GUI::update ( U64 deltaTimeUS )

Main update call. Used to tick gui elements (cursors, animations, etc)

Definition at line 358 of file GUI.cpp.

Friends And Related Function Documentation

◆ SceneGUIElements

friend class SceneGUIElements

friend

Definition at line 173 of file GUI.h.

Member Data Documentation

◆ _activeScene

Scene* Divide::GUI::_activeScene {nullptr}

private

Each scene has its own gui elements! (0 = global). We keep a pointer to the scene but we really shouldn't. Scene should feed itself into GUI.

Definition at line 193 of file GUI.h.

◆ _ceguiContext

CEGUI::GUIContext* Divide::GUI::_ceguiContext {nullptr}

protected

The CEGUI context as returned by the library upon creation.

Definition at line 177 of file GUI.h.

◆ _ceguiInput

CEGUIInput Divide::GUI::_ceguiInput

private

Used to implement key repeat.

Definition at line 183 of file GUI.h.

◆ _ceguiRenderer

CEGUI::CEGUIRenderer* Divide::GUI::_ceguiRenderer { nullptr }

private

Used to render CEGUI to a texture; We want to port this to the Divide::GFX interface.

Definition at line 185 of file GUI.h.

◆ _ceguiRenderShader

Handle<ShaderProgram> Divide::GUI::_ceguiRenderShader = INVALID_HANDLE<ShaderProgram>

private

Definition at line 208 of file GUI.h.

◆ _console

std::unique_ptr<GUIConsole> Divide::GUI::_console

private

Our custom in-game console (for logs and commands. A la Quake's ~-console)

Definition at line 189 of file GUI.h.

◆ _defaultMsgBox

std::unique_ptr<GUIMessageBox> Divide::GUI::_defaultMsgBox

private

Pointer to a default message box used for general purpose messages.

Definition at line 191 of file GUI.h.

◆ _fonsContext

DVDFONSContext_uptr Divide::GUI::_fonsContext

private

We use Font Stash (https://github.com/memononen/fontstash) for rendering basic text on the screen. This is our own Divide::GFX based context object used for rendering.

Definition at line 199 of file GUI.h.

◆ _fontCache

hashAlg::pair<Str<64>, I32> Divide::GUI::_fontCache = { "", -1 }

private

A cache of the last requested font by name to avoid a lookup in the fonts map.

Definition at line 203 of file GUI.h.

◆ _fonts

hashMap<U64, I32> Divide::GUI::_fonts

private

A cache of all font IDs used by Font Stash stored by name ID.

Definition at line 201 of file GUI.h.

◆ _guiStack

GUIMapPerScene Divide::GUI::_guiStack {}

private

All the GUI elements created per scene.

Definition at line 195 of file GUI.h.

◆ _guiStackLock

SharedMutex Divide::GUI::_guiStackLock {}

mutableprivate

A lock to protect access to _guiStack.

Definition at line 197 of file GUI.h.

◆ _init

bool Divide::GUI::_init {false}

private

Set to true when the GUI has finished loading.

Definition at line 181 of file GUI.h.

◆ _renderTextureTarget

CEGUI::DVDTextureTarget* Divide::GUI::_renderTextureTarget {nullptr}

private

Used to render CEGUI elements into. We blit this on top of our scene target.

Definition at line 187 of file GUI.h.

◆ _rootSheet

CEGUI::Window* Divide::GUI::_rootSheet {nullptr}

protected

The root window into which CEGUI anchors all of its elements.

Definition at line 175 of file GUI.h.

◆ _textRenderPipeline

Pipeline* Divide::GUI::_textRenderPipeline {nullptr}

private

The text rendering pipeline we used to draw Font Stash text.

Definition at line 205 of file GUI.h.

◆ _textRenderShader

Handle<ShaderProgram> Divide::GUI::_textRenderShader = INVALID_HANDLE<ShaderProgram>

private

The text rendering shaderProgram we used to draw Font Stash text.

Definition at line 207 of file GUI.h.

The documentation for this class was generated from the following files:

G:/Divide-Framework/Source/GUI/Headers/GUI.h
G:/Divide-Framework/Source/GUI/GUI.cpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ GUIMapPerScene

Constructor & Destructor Documentation

◆ GUI()

◆ ~GUI()

Member Function Documentation

◆ destroy()

◆ draw()

◆ drawText()

◆ frameStarted()

◆ getCEGUIContext()

◆ getConsole() [1/2]

◆ getConsole() [2/2]

◆ getDefaultMessageBox()

◆ getFont()

◆ getSceneGUIElementImpl() [1/4]

◆ getSceneGUIElementImpl() [2/4]

◆ getSceneGUIElementImpl() [3/4]

◆ getSceneGUIElementImpl() [4/4]

◆ init()

◆ joystickAddRemove()

◆ joystickAxisMoved()

◆ joystickBallMoved()

◆ joystickButtonPressed()

◆ joystickButtonReleased()

◆ joystickPovMoved()

◆ joystickRemap()

◆ mouseButtonPressed()

◆ mouseButtonReleased()

◆ mouseMoved()

◆ onChangeScene()

◆ onKeyDown()

◆ onKeyUp()

◆ onResolutionChange()

◆ onTextEvent()

◆ onUnloadScene()

◆ preDraw()

◆ PROPERTY_R() [1/2]

◆ PROPERTY_R() [2/2]

◆ PROPERTY_RW()

◆ recreateDefaultMessageBox()

◆ rootSheet()

◆ setCursorPosition()

◆ showDebugCursor()

◆ update()

Friends And Related Function Documentation

◆ SceneGUIElements

Member Data Documentation

◆ _activeScene

◆ _ceguiContext

◆ _ceguiInput

◆ _ceguiRenderer

◆ _ceguiRenderShader

◆ _console

◆ _defaultMsgBox

◆ _fonsContext

◆ _fontCache

◆ _fonts

◆ _guiStack

◆ _guiStackLock

◆ _init

◆ _renderTextureTarget

◆ _rootSheet

◆ _textRenderPipeline

◆ _textRenderShader
