#include <SceneGraphNode.h>

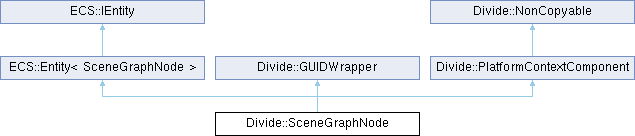

Inheritance diagram for Divide::SceneGraphNode:

Classes
struct	ChildContainer

struct	events

struct	hacks

Public Types
enum class	Flags : U16 { LOADING = toBit( 1 ) , HOVERED = toBit( 2 ) , SELECTED = toBit( 3 ) , ACTIVE = toBit( 4 ) , VISIBILITY_LOCKED = toBit( 5 ) , PARENT_POST_RENDERED = toBit( 6 ) , SELECTION_LOCKED = toBit( 7 ) , IS_CONTAINER = toBit( 8 ) , COUNT = 9 }

Public Member Functions
	SceneGraphNode (PlatformContext &context, SceneGraph *sceneGraph, const SceneGraphNodeDescriptor &descriptor)
	Avoid creating SGNs directly. Use the "addChildNode" on an existing node (even root) or "addNode" on the existing SceneGraph.

	~SceneGraphNode () override
	If we are destroying the current graph node.

SceneGraph *	sceneGraph () noexcept
	Return a reference to the parent graph. Operator= should be disabled.

SceneGraphNode *	addChildNode (const SceneGraphNodeDescriptor &descriptor)
	Add child node increments the node's ref counter if the node was already added to the scene graph.

bool	removeChildNode (const SceneGraphNode *node, bool recursive=true, bool deleteNode=true)

SceneGraphNode *	findChild (U64 nameHash, bool sceneNodeName=false, bool recursive=false) const
	Find a child Node using the given name (either SGN name or SceneNode name)

SceneGraphNode *	findChild (I64 GUID, bool sceneNodeGuid=false, bool recursive=false) const
	Find a child using the given SGN or SceneNode GUID.

bool	removeNodesByType (SceneNodeType nodeType)
	If this function returns true, at least one node of the specified type was removed.

void	setParent (SceneGraphNode *parent, bool defer=false)
	Changing a node's parent means removing this node from the current parent's child list and appending it to the new parent's list (happens after a full frame)

bool	isChildOfType (U16 typeMask) const
	Checks if we have a parent matching the typeMask. We check recursively until we hit the top node (if ignoreRoot is false, top node is Root)

bool	isRelated (const SceneGraphNode *target) const
	Returns true if the current node is related somehow to the specified target node (see RelationshipType enum for more details)

bool	isRelated (const SceneGraphNode *target, SGNRelationshipCache::RelationshipType relationship) const
	Returns true if the current node is related to the specified target node in the specified way (see RelationshipType enum for more details)

bool	isChild (const SceneGraphNode *target, bool recursive) const
	Returns true if the specified target node is a parent or grandparent(if recursive == true) of the current node.

ChildContainer &	getChildren () noexcept

const ChildContainer &	getChildren () const noexcept

void	sceneUpdate (U64 deltaTimeUS, SceneState &sceneState)
	Called from parent SceneGraph.

void	postLoad ()
	Invoked by the contained SceneNode when it finishes all of its internal loading and is ready for processing.

bool	intersect (const Ray &intersectionRay, vec2< F32 > range, vector< SGNRayResult > &intersections) const
	Find the graph nodes whom's bounding boxes intersects the given ray.

void	changeUsageContext (const NodeUsageContext &newContext)

void	setFlag (Flags flag, bool recursive=true)
	General purpose flag management. Certain flags propagate to children (e.g. selection)!

void	clearFlag (Flags flag, bool recursive=true)
	Clearing a flag might propagate to child nodes (e.g. selection).

bool	hasFlag (const Flags flag) const noexcept
	Returns true only if the current node has the specified flag. Does not check children!

template<typename T = SceneNode> requires std::is_base_of_v<SceneNode, T>
T &	getNode () noexcept

FORCE_INLINE SceneNodeHandle	handle () const noexcept

template<typename T = SceneNode> requires std::is_base_of_v<SceneNode, T>
const T &	getNode () const noexcept

template<typename T >
FORCE_INLINE T *	get () const
	Returns a pointer to a specific component. Returns null if the SGN does not have the component requested.

FORCE_INLINE U32	dataFlag () const noexcept

void	SendEvent (ECS::CustomEvent &&event)

template<class E , class... ARGS>
void	SendEvent (ARGS &&... eventArgs) const
	Sends a global event but dispatched is handled between update steps.

template<class E , class... ARGS>
void	SendAndDispatchEvent (ARGS &&... eventArgs) const
	Sends a global event with dispatched happening immediately. Avoid using often. Bad for performance.

template<class T , class ... P> requires std::is_base_of_v<SGNComponent, T>
T *	AddSGNComponent (P &&... param)

template<class T > requires std::is_base_of_v<SGNComponent, T>
void	RemoveSGNComponent ()
	Remove a component by type (if any). Because we have a limit of one component type per node, this works as expected.

void	AddComponents (U32 componentMask, bool allowDuplicates)

void	RemoveComponents (U32 componentMask)

bool	HasComponents (ComponentType componentType) const

bool	HasComponents (U32 componentMask) const

void	saveToXML (const ResourcePath &sceneLocation, DELEGATE< void, std::string_view > msgCallback={}) const
	Serialization: save to XML file.

void	loadFromXML (const ResourcePath &sceneLocation)

void	loadFromXML (const boost::property_tree::ptree &pt)
	Serialization: load from XML file (expressed as a boost property_tree)

template<>
TransformComponent *	get () const

template<>
BoundsComponent *	get () const

template<>
RenderingComponent *	get () const

Public Member Functions inherited from ECS::Entity< SceneGraphNode >
EntityTypeId	GetStaticEntityTypeID () const override

	Entity ()

virtual	~Entity ()

Public Member Functions inherited from ECS::IEntity
	IEntity ()

virtual	~IEntity ()

template<class T >
T *	GetComponent () const

template<class T , class ... P>
T *	AddComponent (P &&... param)

template<class T >
void	RemoveComponent ()

void	RemoveAllComponents ()

void	PassDataToAllComponents (const ECS::CustomEvent &evt)

bool	operator== (const IEntity &rhs) const

bool	operator!= (const IEntity &rhs) const

bool	operator== (const IEntity *rhs) const

bool	operator!= (const IEntity *rhs) const

virtual EntityTypeId	GetStaticEntityTypeID () const =0

EntityId	GetEntityID () const

void	SetActive (bool active)

bool	IsActive () const

virtual void	OnEnable ()

virtual void	OnDisable ()

Public Member Functions inherited from Divide::GUIDWrapper
	GUIDWrapper () noexcept

	GUIDWrapper (const GUIDWrapper &old) noexcept

	GUIDWrapper (GUIDWrapper &&old) noexcept

virtual	~GUIDWrapper ()=default

FORCE_INLINE I64	getGUID () const noexcept

GUIDWrapper &	operator= (const GUIDWrapper &old)=delete

GUIDWrapper &	operator= (GUIDWrapper &&other)=delete

Public Member Functions inherited from Divide::PlatformContextComponent
	PlatformContextComponent (PlatformContext &context) noexcept

virtual	~PlatformContextComponent ()=default

PlatformContext &	context () noexcept

const PlatformContext &	context () const noexcept

Public Member Functions inherited from Divide::NonCopyable
	NonCopyable (const NonCopyable &)=delete

NonCopyable &	operator= (const NonCopyable &)=delete

	NonCopyable (NonCopyable &&)=default

NonCopyable &	operator= (NonCopyable &&)=default

Protected Member Functions
void	updateCollisions (const SceneGraphNode &parentNode, IntersectionContainer &intersections, Mutex &intersectionsLock) const

Protected Member Functions inherited from Divide::NonCopyable
	NonCopyable ()=default

	~NonCopyable ()=default

Private Member Functions
void	processEvents ()
	Process any events that might of queued up during the ECS Update stages.

SceneGraphNode *	addChildNode (SceneGraphNode *sgn)
	Add a new SceneGraphNode to the current node's child list based on a SceneNode.

FrustumCollision	stateCullNode (const NodeCullParams &params, U16 cullFlags, U32 filterMask, const F32 distanceToClosestPointSQ) const
	Returns a collision result that determines if the node SHOULD be culled (is not visible for the current stage).

FrustumCollision	clippingCullNode (const NodeCullParams &params) const

FrustumCollision	frustumCullNode (const NodeCullParams &params, U16 cullFlags, F32 &distanceToClosestPointSQ) const

void	prepareRender (RenderingComponent &rComp, RenderPackage &pkg, GFX::MemoryBarrierCommand &postDrawMemCmd, const RenderStagePass &renderStagePass, const CameraSnapshot &cameraSnapshot, bool refreshData)
	Called after preRender and after we rebuild our command buffers. Useful for modifying the command buffer that's going to be used for this RenderStagePass.

void	onNetworkSend (U32 frameCount) const
	Called whenever we send a networking packet from our NetworkingComponent (if any). FrameCount is the frame ID sent with the packet.

void	getAllNodes (vector< SceneGraphNode * > &nodeList)
	Returns a bottom-up list(leafs -> root) of all of the nodes parented under the current one.

void	processDeleteQueue (vector< size_t > &childList)
	Destructs all of the nodes specified in the list and removes them from the _children container.

bool	saveCache (ByteBuffer &outputBuffer) const
	Similar to the saveToXML call but is geared towards temporary state (e.g. save game)

bool	loadCache (ByteBuffer &inputBuffer)
	Similar to the loadFromXML call but is geared towards temporary state (e.g. save game)

void	setTransformDirty (U32 transformMask)
	Called by the TransformComponent whenever the transform changed.

ECS::ECSEngine &	GetECSEngine () const noexcept
	This indirect is used to avoid including ECS headers in this file, but we still need the ECS engine for templated methods.

void	invalidateRelationshipCache (SceneGraphNode *source=nullptr)
	Only called from withing "setParent()" (which is also called from "addChildNode()"). Used to mark the existing relationship cache as invalid.

void	setParentInternal ()
	Changes this node's parent.

bool	canDraw (const RenderStagePass &stagePass) const

void	AddSGNComponentInternal (SGNComponent *comp)

void	RemoveSGNComponentInternal (SGNComponent *comp)

template<bool checkInternalNode = false>
SceneGraphNode *	findChildInternal (U64 nameHash, bool recursive=false) const

template<bool checkInternalNode = false>
SceneGraphNode *	findChildInternal (I64 GUID, bool recursive=false) const

	POINTER_R (SceneGraph, sceneGraph, nullptr)

	POINTER_R (SceneNode, node, nullptr)

	POINTER_R (ECS::ComponentManager, compManager, nullptr)

	POINTER_R (SceneGraphNode, parent, nullptr)

	PROPERTY_R (Str< 64 >, name, "")

	PROPERTY_R (U64, nameHash, 0u)

	PROPERTY_R (I64, queuedNewParent, -1)

	PROPERTY_R (U32, componentMask, 0u)

	PROPERTY_R (U32, nodeFlags, 0u)

	PROPERTY_R (U32, instanceCount, 1u)

	PROPERTY_R (bool, serialize, true)

	PROPERTY_R (NodeUsageContext, usageContext, NodeUsageContext::NODE_STATIC)

Static Private Member Functions
static void	PostLoad (SceneNode sceneNode, SceneGraphNode sgn)
	As opposed to "postLoad()" that's called when the SceneNode is ready for processing, this call is used as a callback for when the SceneNode finishes loading as a Resource. postLoad() is called after this always.

Private Attributes
SGNRelationshipCache	_relationshipCache

ChildContainer	_children

struct Divide::SceneGraphNode::hacks	Hacks

struct Divide::SceneGraphNode::events	Events

I8	_frustPlaneCache = -1

const SceneGraphNodeDescriptor	_descriptor

Friends
class	Attorney::SceneGraphNodeEditor

class	Attorney::SceneGraphNodeComponent

class	Attorney::SceneGraphNodeSystem

class	Attorney::SceneGraphNodeSceneGraph

class	Attorney::SceneGraphNodeRenderPassCuller

class	Attorney::SceneGraphNodeRenderPassManager

class	Attorney::SceneGraphNodeRelationshipCache

Additional Inherited Members
Static Public Member Functions inherited from Divide::GUIDWrapper
static I64	generateGUID () noexcept

Static Public Attributes inherited from ECS::Entity< SceneGraphNode >
static const EntityTypeId	STATIC_ENTITY_TYPE_ID

Protected Attributes inherited from ECS::IEntity
DECLARE_STATIC_LOGGER EntityId	m_EntityID

bool	m_Active

Protected Attributes inherited from Divide::GUIDWrapper
const I64	_guid

Protected Attributes inherited from Divide::PlatformContextComponent
PlatformContext &	_context

Static Protected Attributes inherited from ECS::IEntity
static std::shared_mutex	s_ComponentManagerLock

Detailed Description

Definition at line 107 of file SceneGraphNode.h.

Member Enumeration Documentation

◆ Flags

enum class Divide::SceneGraphNode::Flags : U16

strong

Enumerator
LOADING
HOVERED
SELECTED
ACTIVE
VISIBILITY_LOCKED
PARENT_POST_RENDERED
SELECTION_LOCKED
IS_CONTAINER
COUNT

Definition at line 121 of file SceneGraphNode.h.

Constructor & Destructor Documentation

◆ SceneGraphNode()

Divide::SceneGraphNode::SceneGraphNode	(	PlatformContext &	context,
		SceneGraph *	sceneGraph,
		const SceneGraphNodeDescriptor &	descriptor
	)

explicit

Avoid creating SGNs directly. Use the "addChildNode" on an existing node (even root) or "addNode" on the existing SceneGraph.

Definition at line 152 of file SceneGraphNode.cpp.

◆ ~SceneGraphNode()

Divide::SceneGraphNode::~SceneGraphNode ( )

override

If we are destroying the current graph node.

Definition at line 206 of file SceneGraphNode.cpp.

Member Function Documentation

◆ addChildNode() [1/2]

SceneGraphNode * Divide::SceneGraphNode::addChildNode ( const SceneGraphNodeDescriptor & descriptor )

Add child node increments the node's ref counter if the node was already added to the scene graph.

Add a new SceneGraphNode to the current node's child list based on a SceneNode.

Definition at line 819 of file SceneGraphNode.cpp.

◆ addChildNode() [2/2]

SceneGraphNode * Divide::SceneGraphNode::addChildNode ( SceneGraphNode * sgn )

private

Add a new SceneGraphNode to the current node's child list based on a SceneNode.

Definition at line 336 of file SceneGraphNode.cpp.

◆ AddComponents()

void Divide::SceneGraphNode::AddComponents	(	U32	componentMask,
		bool	allowDuplicates
	)

Definition at line 48 of file SceneGraphNode.cpp.

◆ AddSGNComponent()

template<class T , class ... P>
requires std::is_base_of_v<SGNComponent, T>

T * Divide::SceneGraphNode::AddSGNComponent ( P &&... param )

inline

Emplacement call for an ECS component. Pass in the component's constructor parameters. Can only add one component of a single type. This may be bad for scripts, but there are workarounds

Definition at line 266 of file SceneGraphNode.h.

◆ AddSGNComponentInternal()

void Divide::SceneGraphNode::AddSGNComponentInternal ( SGNComponent * comp )

private

Definition at line 63 of file SceneGraphNode.cpp.

◆ canDraw()

bool Divide::SceneGraphNode::canDraw ( const RenderStagePass & stagePass ) const

private

Definition at line 719 of file SceneGraphNode.cpp.

◆ changeUsageContext()

void Divide::SceneGraphNode::changeUsageContext ( const NodeUsageContext & newContext )

Definition at line 235 of file SceneGraphNode.cpp.

◆ clearFlag()

void Divide::SceneGraphNode::clearFlag	(	Flags	flag,
		bool	recursive = `true`
	)

Clearing a flag might propagate to child nodes (e.g. selection).

Definition at line 1174 of file SceneGraphNode.cpp.

◆ clippingCullNode()

FrustumCollision Divide::SceneGraphNode::clippingCullNode ( const NodeCullParams & params ) const

private

Definition at line 913 of file SceneGraphNode.cpp.

◆ dataFlag()

FORCE_INLINE U32 Divide::SceneGraphNode::dataFlag ( ) const

inlinenoexcept

Definition at line 246 of file SceneGraphNode.h.

◆ findChild() [1/2]

SceneGraphNode * Divide::SceneGraphNode::findChild	(	I64	GUID,
		bool	sceneNodeGuid = `false`,
		bool	recursive = `false`
	)		const

Find a child using the given SGN or SceneNode GUID.

Definition at line 504 of file SceneGraphNode.cpp.

◆ findChild() [2/2]

SceneGraphNode * Divide::SceneGraphNode::findChild	(	U64	nameHash,
		bool	sceneNodeName = `false`,
		bool	recursive = `false`
	)		const

Find a child Node using the given name (either SGN name or SceneNode name)

Definition at line 498 of file SceneGraphNode.cpp.

◆ findChildInternal() [1/2]

template<bool checkInternalNode>

SceneGraphNode * Divide::SceneGraphNode::findChildInternal	(	I64	GUID,
		bool	recursive = `false`
	)		const

inlineprivate

Definition at line 138 of file SceneGraphNode.inl.

◆ findChildInternal() [2/2]

template<bool checkInternalNode>

SceneGraphNode * Divide::SceneGraphNode::findChildInternal	(	U64	nameHash,
		bool	recursive = `false`
	)		const

inlineprivate

Definition at line 98 of file SceneGraphNode.inl.

◆ frustumCullNode()

FrustumCollision Divide::SceneGraphNode::frustumCullNode	(	const NodeCullParams &	params,
		U16	cullFlags,
		F32 &	distanceToClosestPointSQ
	)		const

private

Definition at line 941 of file SceneGraphNode.cpp.

◆ get() [1/4]

template<typename T >

FORCE_INLINE T * Divide::SceneGraphNode::get ( ) const

inline

Returns a pointer to a specific component. Returns null if the SGN does not have the component requested.

Definition at line 241 of file SceneGraphNode.h.

◆ get() [2/4]

template<>

TransformComponent * Divide::SceneGraphNode::get ( ) const

inline

Definition at line 59 of file SceneGraphNode.inl.

◆ get() [3/4]

template<>

BoundsComponent * Divide::SceneGraphNode::get ( ) const

inline

Definition at line 65 of file SceneGraphNode.inl.

◆ get() [4/4]

template<>

RenderingComponent * Divide::SceneGraphNode::get ( ) const

inline

Definition at line 71 of file SceneGraphNode.inl.

◆ getAllNodes()

void Divide::SceneGraphNode::getAllNodes ( vector< SceneGraphNode * > & nodeList )

private

Returns a bottom-up list(leafs -> root) of all of the nodes parented under the current one.

Definition at line 547 of file SceneGraphNode.cpp.

◆ getChildren() [1/2]

const ChildContainer & Divide::SceneGraphNode::getChildren ( ) const

inlinenoexcept

Definition at line 195 of file SceneGraphNode.h.

◆ getChildren() [2/2]

ChildContainer & Divide::SceneGraphNode::getChildren ( )

inlinenoexcept

Definition at line 191 of file SceneGraphNode.h.

◆ GetECSEngine()

ECS::ECSEngine & Divide::SceneGraphNode::GetECSEngine ( ) const

privatenoexcept

This indirect is used to avoid including ECS headers in this file, but we still need the ECS engine for templated methods.

Definition at line 43 of file SceneGraphNode.cpp.

◆ getNode() [1/2]

template<typename T = SceneNode>
requires std::is_base_of_v<SceneNode, T>

const T & Divide::SceneGraphNode::getNode ( ) const

inlinenoexcept

Always use the level of redirection needed to reduce virtual function overhead. Use getNode<SceneNode> if you need material properties for ex. or getNode<SkinnedSubMesh> for animation transforms

Definition at line 234 of file SceneGraphNode.h.

◆ getNode() [2/2]

template<typename T = SceneNode>
requires std::is_base_of_v<SceneNode, T>

T & Divide::SceneGraphNode::getNode ( )

inlinenoexcept

Always use the level of redirection needed to reduce virtual function overhead. Use getNode<SceneNode> if you need material properties for ex. or getNode<SkinnedSubMesh> for animation transforms

Definition at line 221 of file SceneGraphNode.h.

◆ handle()

FORCE_INLINE SceneNodeHandle Divide::SceneGraphNode::handle ( ) const

inlinenoexcept

Definition at line 226 of file SceneGraphNode.h.

◆ HasComponents() [1/2]

bool Divide::SceneGraphNode::HasComponents ( ComponentType componentType ) const

Definition at line 128 of file SceneGraphNode.cpp.

◆ HasComponents() [2/2]

bool Divide::SceneGraphNode::HasComponents ( U32 componentMask ) const

Definition at line 133 of file SceneGraphNode.cpp.

◆ hasFlag()

FORCE_INLINE bool Divide::SceneGraphNode::hasFlag ( const Flags flag ) const

noexcept

Returns true only if the current node has the specified flag. Does not check children!

Definition at line 53 of file SceneGraphNode.inl.

◆ intersect()

bool Divide::SceneGraphNode::intersect	(	const Ray &	intersectionRay,
		vec2< F32 >	range,
		vector< SGNRayResult > &	intersections
	)		const

Find the graph nodes whom's bounding boxes intersects the given ray.

Definition at line 510 of file SceneGraphNode.cpp.

◆ invalidateRelationshipCache()

void Divide::SceneGraphNode::invalidateRelationshipCache ( SceneGraphNode * source = nullptr )

private

Only called from withing "setParent()" (which is also called from "addChildNode()"). Used to mark the existing relationship cache as invalid.

Definition at line 1020 of file SceneGraphNode.cpp.

◆ isChild()

bool Divide::SceneGraphNode::isChild	(	const SceneGraphNode *	target,
		bool	recursive
	)		const

Returns true if the specified target node is a parent or grandparent(if recursive == true) of the current node.

Definition at line 483 of file SceneGraphNode.cpp.

◆ isChildOfType()

bool Divide::SceneGraphNode::isChildOfType ( U16 typeMask ) const

Checks if we have a parent matching the typeMask. We check recursively until we hit the top node (if ignoreRoot is false, top node is Root)

Definition at line 446 of file SceneGraphNode.cpp.

◆ isRelated() [1/2]

bool Divide::SceneGraphNode::isRelated ( const SceneGraphNode * target ) const

Returns true if the current node is related somehow to the specified target node (see RelationshipType enum for more details)

Definition at line 461 of file SceneGraphNode.cpp.

◆ isRelated() [2/2]

bool Divide::SceneGraphNode::isRelated	(	const SceneGraphNode *	target,
		SGNRelationshipCache::RelationshipType	relationship
	)		const

Returns true if the current node is related to the specified target node in the specified way (see RelationshipType enum for more details)

Definition at line 472 of file SceneGraphNode.cpp.

◆ loadCache()

bool Divide::SceneGraphNode::loadCache ( ByteBuffer & inputBuffer )

private

Similar to the loadFromXML call but is geared towards temporary state (e.g. save game)

Definition at line 1058 of file SceneGraphNode.cpp.

◆ loadFromXML() [1/2]

void Divide::SceneGraphNode::loadFromXML ( const boost::property_tree::ptree & pt )

Serialization: load from XML file (expressed as a boost property_tree)

Definition at line 1115 of file SceneGraphNode.cpp.

◆ loadFromXML() [2/2]

void Divide::SceneGraphNode::loadFromXML ( const ResourcePath & sceneLocation )

Definition at line 1103 of file SceneGraphNode.cpp.

◆ onNetworkSend()

void Divide::SceneGraphNode::onNetworkSend ( U32 frameCount ) const

private

Called whenever we send a networking packet from our NetworkingComponent (if any). FrameCount is the frame ID sent with the packet.

Definition at line 702 of file SceneGraphNode.cpp.

◆ POINTER_R() [1/4]

Divide::SceneGraphNode::POINTER_R	(	ECS::ComponentManager	,
		compManager	,
		nullptr
	)

private

◆ POINTER_R() [2/4]

Divide::SceneGraphNode::POINTER_R	(	SceneGraph	,
		sceneGraph	,
		nullptr
	)

private

◆ POINTER_R() [3/4]

Divide::SceneGraphNode::POINTER_R	(	SceneGraphNode	,
		parent	,
		nullptr
	)

private

◆ POINTER_R() [4/4]

Divide::SceneGraphNode::POINTER_R	(	SceneNode	,
		node	,
		nullptr
	)

private

◆ postLoad()

void Divide::SceneGraphNode::postLoad ( )

Invoked by the contained SceneNode when it finishes all of its internal loading and is ready for processing.

Definition at line 438 of file SceneGraphNode.cpp.

◆ PostLoad()

void Divide::SceneGraphNode::PostLoad	(	SceneNode *	sceneNode,
		SceneGraphNode *	sgn
	)

staticprivate

As opposed to "postLoad()" that's called when the SceneNode is ready for processing, this call is used as a callback for when the SceneNode finishes loading as a Resource. postLoad() is called after this always.

Definition at line 354 of file SceneGraphNode.cpp.

◆ prepareRender()

void Divide::SceneGraphNode::prepareRender	(	RenderingComponent &	rComp,
		RenderPackage &	pkg,
		GFX::MemoryBarrierCommand &	postDrawMemCmd,
		const RenderStagePass &	renderStagePass,
		const CameraSnapshot &	cameraSnapshot,
		bool	refreshData
	)

private

Called after preRender and after we rebuild our command buffers. Useful for modifying the command buffer that's going to be used for this RenderStagePass.

Definition at line 661 of file SceneGraphNode.cpp.

◆ processDeleteQueue()

void Divide::SceneGraphNode::processDeleteQueue ( vector< size_t > & childList )

private

Destructs all of the nodes specified in the list and removes them from the _children container.

Definition at line 562 of file SceneGraphNode.cpp.

◆ processEvents()

void Divide::SceneGraphNode::processEvents ( )

private

Process any events that might of queued up during the ECS Update stages.

Definition at line 598 of file SceneGraphNode.cpp.

◆ PROPERTY_R() [1/8]

Divide::SceneGraphNode::PROPERTY_R	(	bool	,
		serialize	,
		true
	)

private

◆ PROPERTY_R() [2/8]

Divide::SceneGraphNode::PROPERTY_R	(	I64	,
		queuedNewParent	,
		-	1
	)

private

◆ PROPERTY_R() [3/8]

Divide::SceneGraphNode::PROPERTY_R	(	NodeUsageContext	,
		usageContext	,
		NodeUsageContext::NODE_STATIC
	)

private

◆ PROPERTY_R() [4/8]

Divide::SceneGraphNode::PROPERTY_R	(	Str< 64 >	,
		name	,
		""
	)

private

◆ PROPERTY_R() [5/8]

Divide::SceneGraphNode::PROPERTY_R	(	U32	,
		componentMask	,
		0u
	)

private

◆ PROPERTY_R() [6/8]

Divide::SceneGraphNode::PROPERTY_R	(	U32	,
		instanceCount	,
		1u
	)

private

◆ PROPERTY_R() [7/8]

Divide::SceneGraphNode::PROPERTY_R	(	U32	,
		nodeFlags	,
		0u
	)

private

◆ PROPERTY_R() [8/8]

Divide::SceneGraphNode::PROPERTY_R	(	U64	,
		nameHash	,
		0u
	)

private

◆ removeChildNode()

bool Divide::SceneGraphNode::removeChildNode	(	const SceneGraphNode *	node,
		bool	recursive = `true`,
		bool	deleteNode = `true`
	)

If this function returns true, the node will no longer be part of the scene hierarchy. If the node is not a child of the calling node, we will recursively look in all of its children for a match

Definition at line 396 of file SceneGraphNode.cpp.

◆ RemoveComponents()

void Divide::SceneGraphNode::RemoveComponents ( U32 componentMask )

Definition at line 116 of file SceneGraphNode.cpp.

◆ removeNodesByType()

bool Divide::SceneGraphNode::removeNodesByType ( SceneNodeType nodeType )

If this function returns true, at least one node of the specified type was removed.

Definition at line 364 of file SceneGraphNode.cpp.

◆ RemoveSGNComponent()

template<class T >
requires std::is_base_of_v<SGNComponent, T>

void Divide::SceneGraphNode::RemoveSGNComponent ( )

inline

Remove a component by type (if any). Because we have a limit of one component type per node, this works as expected.

Definition at line 275 of file SceneGraphNode.h.

◆ RemoveSGNComponentInternal()

void Divide::SceneGraphNode::RemoveSGNComponentInternal ( SGNComponent * comp )

private

Definition at line 83 of file SceneGraphNode.cpp.

◆ saveCache()

bool Divide::SceneGraphNode::saveCache ( ByteBuffer & outputBuffer ) const

private

Similar to the saveToXML call but is geared towards temporary state (e.g. save game)

Definition at line 1050 of file SceneGraphNode.cpp.

◆ saveToXML()

void Divide::SceneGraphNode::saveToXML	(	const ResourcePath &	sceneLocation,
		DELEGATE< void, std::string_view >	msgCallback = `{}`
	)		const

Serialization: save to XML file.

Definition at line 1068 of file SceneGraphNode.cpp.

◆ sceneGraph()

SceneGraph * Divide::SceneGraphNode::sceneGraph ( )

inlinenoexcept

Return a reference to the parent graph. Operator= should be disabled.

Definition at line 156 of file SceneGraphNode.h.

◆ sceneUpdate()

void Divide::SceneGraphNode::sceneUpdate	(	U64	deltaTimeUS,
		SceneState &	sceneState
	)

Called from parent SceneGraph.

Definition at line 578 of file SceneGraphNode.cpp.

◆ SendAndDispatchEvent()

template<class E , class... ARGS>

void Divide::SceneGraphNode::SendAndDispatchEvent ( ARGS &&... eventArgs ) const

inline

Sends a global event with dispatched happening immediately. Avoid using often. Bad for performance.

Definition at line 258 of file SceneGraphNode.h.

◆ SendEvent() [1/2]

template<class E , class... ARGS>

void Divide::SceneGraphNode::SendEvent ( ARGS &&... eventArgs ) const

inline

Sends a global event but dispatched is handled between update steps.

Definition at line 252 of file SceneGraphNode.h.

◆ SendEvent() [2/2]

void Divide::SceneGraphNode::SendEvent ( ECS::CustomEvent && event )

Definition at line 1202 of file SceneGraphNode.cpp.

◆ setFlag()

void Divide::SceneGraphNode::setFlag	(	Flags	flag,
		bool	recursive = `true`
	)

General purpose flag management. Certain flags propagate to children (e.g. selection)!

Definition at line 1146 of file SceneGraphNode.cpp.

◆ setParent()

void Divide::SceneGraphNode::setParent	(	SceneGraphNode *	parent,
		bool	defer = `false`
	)

Changing a node's parent means removing this node from the current parent's child list and appending it to the new parent's list (happens after a full frame)

Change current SceneGraphNode's parent.

Definition at line 253 of file SceneGraphNode.cpp.

◆ setParentInternal()

void Divide::SceneGraphNode::setParentInternal ( )

private

Changes this node's parent.

Definition at line 266 of file SceneGraphNode.cpp.

◆ setTransformDirty()

void Divide::SceneGraphNode::setTransformDirty ( U32 transformMask )

private

Called by the TransformComponent whenever the transform changed.

Definition at line 138 of file SceneGraphNode.cpp.

◆ stateCullNode()

FrustumCollision Divide::SceneGraphNode::stateCullNode	(	const NodeCullParams &	params,
		U16	cullFlags,
		U32	filterMask,
		const F32	distanceToClosestPointSQ
	)		const

private

Returns a collision result that determines if the node SHOULD be culled (is not visible for the current stage).

Definition at line 831 of file SceneGraphNode.cpp.

◆ updateCollisions()

void Divide::SceneGraphNode::updateCollisions	(	const SceneGraphNode &	parentNode,
		IntersectionContainer &	intersections,
		Mutex &	intersectionsLock
	)		const

protected

Definition at line 1230 of file SceneGraphNode.cpp.

Friends And Related Function Documentation

◆ Attorney::SceneGraphNodeComponent

friend class Attorney::SceneGraphNodeComponent

friend

Definition at line 112 of file SceneGraphNode.h.

◆ Attorney::SceneGraphNodeEditor

friend class Attorney::SceneGraphNodeEditor

friend

Definition at line 111 of file SceneGraphNode.h.

◆ Attorney::SceneGraphNodeRelationshipCache

friend class Attorney::SceneGraphNodeRelationshipCache

friend

Definition at line 117 of file SceneGraphNode.h.

◆ Attorney::SceneGraphNodeRenderPassCuller

friend class Attorney::SceneGraphNodeRenderPassCuller

friend

Definition at line 115 of file SceneGraphNode.h.

◆ Attorney::SceneGraphNodeRenderPassManager

friend class Attorney::SceneGraphNodeRenderPassManager

friend

Definition at line 116 of file SceneGraphNode.h.

◆ Attorney::SceneGraphNodeSceneGraph

friend class Attorney::SceneGraphNodeSceneGraph

friend

Definition at line 114 of file SceneGraphNode.h.

◆ Attorney::SceneGraphNodeSystem

friend class Attorney::SceneGraphNodeSystem

friend

Definition at line 113 of file SceneGraphNode.h.

Member Data Documentation

◆ _children

ChildContainer Divide::SceneGraphNode::_children

private

Definition at line 343 of file SceneGraphNode.h.

◆ _descriptor

const SceneGraphNodeDescriptor Divide::SceneGraphNode::_descriptor

private

Definition at line 378 of file SceneGraphNode.h.

◆ _frustPlaneCache

I8 Divide::SceneGraphNode::_frustPlaneCache = -1

mutableprivate

Definition at line 375 of file SceneGraphNode.h.

◆ _relationshipCache

SGNRelationshipCache Divide::SceneGraphNode::_relationshipCache

private

Definition at line 342 of file SceneGraphNode.h.

◆ Events

struct Divide::SceneGraphNode::events Divide::SceneGraphNode::Events

private

◆ Hacks

struct Divide::SceneGraphNode::hacks Divide::SceneGraphNode::Hacks

private

The documentation for this class was generated from the following files:

G:/Divide-Framework/Source/Graphs/Headers/SceneGraphNode.h
G:/Divide-Framework/Source/Graphs/Headers/SceneGraphNode.inl
G:/Divide-Framework/Source/Graphs/SceneGraphNode.cpp

Classes

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Flags

Constructor & Destructor Documentation

◆ SceneGraphNode()

◆ ~SceneGraphNode()

Member Function Documentation

◆ addChildNode() [1/2]

◆ addChildNode() [2/2]

◆ AddComponents()

◆ AddSGNComponent()

◆ AddSGNComponentInternal()

◆ canDraw()

◆ changeUsageContext()

◆ clearFlag()

◆ clippingCullNode()

◆ dataFlag()

◆ findChild() [1/2]

◆ findChild() [2/2]

◆ findChildInternal() [1/2]

◆ findChildInternal() [2/2]

◆ frustumCullNode()

◆ get() [1/4]

◆ get() [2/4]

◆ get() [3/4]

◆ get() [4/4]

◆ getAllNodes()

◆ getChildren() [1/2]

◆ getChildren() [2/2]

◆ GetECSEngine()

◆ getNode() [1/2]

◆ getNode() [2/2]

◆ handle()

◆ HasComponents() [1/2]

◆ HasComponents() [2/2]

◆ hasFlag()

◆ intersect()

◆ invalidateRelationshipCache()

◆ isChild()

◆ isChildOfType()

◆ isRelated() [1/2]

◆ isRelated() [2/2]

◆ loadCache()

◆ loadFromXML() [1/2]

◆ loadFromXML() [2/2]

◆ onNetworkSend()

◆ POINTER_R() [1/4]

◆ POINTER_R() [2/4]

◆ POINTER_R() [3/4]

◆ POINTER_R() [4/4]

◆ postLoad()

◆ PostLoad()

◆ prepareRender()

◆ processDeleteQueue()

◆ processEvents()

◆ PROPERTY_R() [1/8]

◆ PROPERTY_R() [2/8]

◆ PROPERTY_R() [3/8]

◆ PROPERTY_R() [4/8]

◆ PROPERTY_R() [5/8]

◆ PROPERTY_R() [6/8]

◆ PROPERTY_R() [7/8]

◆ PROPERTY_R() [8/8]

◆ removeChildNode()

◆ RemoveComponents()

◆ removeNodesByType()

◆ RemoveSGNComponent()

◆ RemoveSGNComponentInternal()

◆ saveCache()

◆ saveToXML()

◆ sceneGraph()
